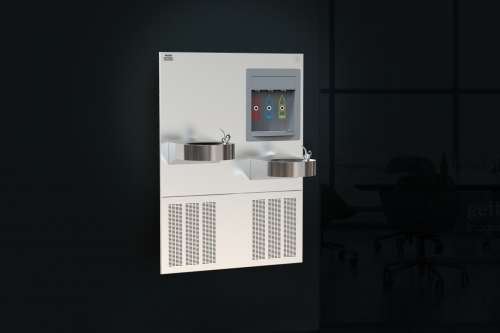

WAE DWF with Chiller is equipped with grille slots to eliminate sharp edges backed with a foam filter to protect the fan motor and high displacement compressor from debris. Laminar flow prevents splashing, keeping the drinking area contained and clean.

Construct

Rugged ADA accessible 18-gauge Type 304 SS bowl

IN-WALL MOUNTING SYSTEM

36" X 3” thick solid steel for a heavy-duty installation

Installation

Pre-built fountain

Mounting

Wall bracket: 14-gauge Type 304 SS

Bottle filling integration

Stand-alone station, or mounted above drinking fountain models

Bubbler Head

Integral .7" dia. basin shank and stainless anti-rotation roll pin

Operating pressure range

30 to 90 psi (2.1 to 6.2 bar).

Chilling capacity

30 LPH remote water chiller

Dispensing rate

100 LPH (.45 gpm)

Maintenance

Front access to valve adjustment &cartridge replacement

Optional Purification

5 stage purification including UVC

Compliance

NSF/ANSI Standard 61; NSF/ANSI 372

Refrigeration

R-134a

Temperature range

10° C cooled from 26.7° C inlet water at 32.2° C ambient

Power

220 Volts, 50Hz

Full Load

5 Apms

Wattage

370 Watts
